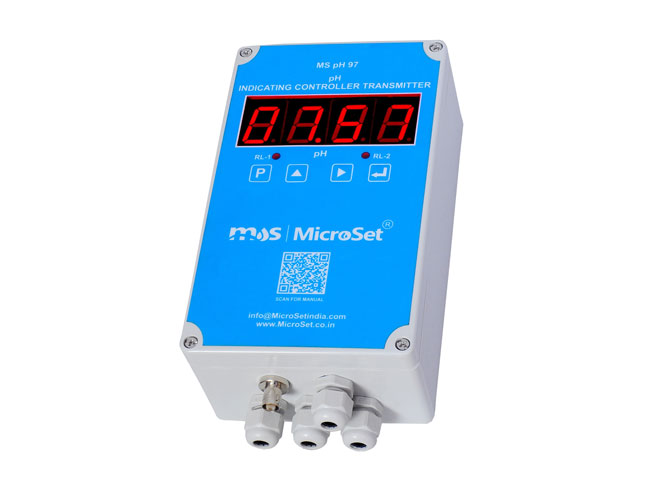

pH Controller MS pH 97 Field Mounted

DESCRIPTION :
MicroSet pH Indicating Controller Transmitter Model MS pH 97 is used for various industrial applications. MS pH 97 is a convenient and cost effective solution for monitoring and maintaining pH value. It can accept input from any pH sensor. MS pH 97 output is in the form of Analogue 4-20 mA DC or MODBUS RS 485 RTU (Optional). Online pH indication provided through LED is easily readable. 2 Nos Relay Outputs are provided to operate Alarm, Solenoid Valve, Pump etc. 4 Nos Setpoints for Relays can be programmed using Frontal Keypad.


    FEATURE :
  • Advanced Embedded Microcontroller Based Design
  • Wheatear proof
  • Easy Front Key Calibration
  • Auto / Manual Temperature Compensation
  • LED indication for relay status
  • Set Point – 4 Nos ( Special Logic )
  • 4 digit,1 inch High Intensity Red LED Display
  • pH Sensor Slope Indication (Healthiness of pH Sensor)
  • 4 to 20 mA DC Isolated Output
  • RS 485 Isolated Output (Optional)

TECHNICAL SPECIFICATION :
pH Range : 0 - 14 pH
Temperature Range : 0 to 149.9°C
pH Resolution : 0.01 pH
Temperature Resolution : 0.1°C
pH Accuracy : ± 0.01pH
Temperature Accuracy : ± 1°C
pH Repeatability : ± 1 LSB
Display : 4 Digit, 1 inch Red LED
Set Point : 4 Nos (Special Logic)
Calibration : 2 Point / 3 Point
Output : 2 Isolated Relays ( 230 V AC / 7 A)
Retransmission Output : Isolated 4-20 mA DC for pH (Isolated RS 485 Optional)
Temperature Compensation : Auto (PT-100)
Manual (Adjustable 0 to 149.9°C)
Power Supply : 230 V AC ±10%, 50 Hz
Enclosure MOC : ABS
Mounting : Field Mounted
Dimesnions : 120 x 200 x 75 mm
