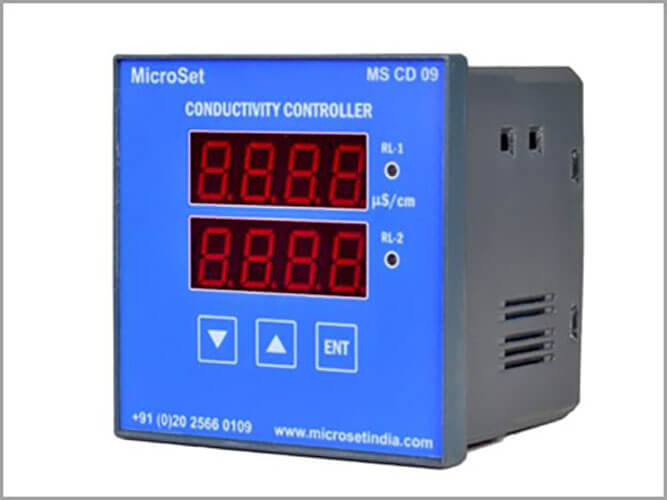

Conductivity Indicating Controller - MS CD 09

INTRODUCTION
It is an economical meter for online measurement of specific Conductivity of solution using a Conductivity cell for RO plant or DM plant applications. It enables to measure the Conductivity without manual balancing and specific Conductivity is read directly on a digital panel. This is available in panel mounting facility in compact size.

    SPECIFICATION :
  • Range : 2000 μS/cm or Specify the range
  • Measuring Accuracy : ±1% of full Scale in all ranges count @30ºC
  • Indication : 3.5 digit LED display
  • Calibration : Keypad Calibration
  • Control Setting : 2 changeover Relay potential free contact of 5 Amps
  • Power Requirement : 230 V AC±10%, 50 Hz single phase
  • Output : 4~20 mA DC (Optional)
  • Size : 96 x 96 x 120 mm
  • Environment : 0 to 50ºC
