FEATURE
• Sterilizable / Autoclavable
• Gel electrolyte
• Sterilization Temperature up to 130°C
• 35 Steam Cycles - Ensures fast & accurate long life in actual process
conditions
• Fast, Accurate, Improved Stability, Reliable
• 120, 170, 220, 270 and 320 mm Length available
• Compatible with any make pH Transmitter
DESCRIPTION

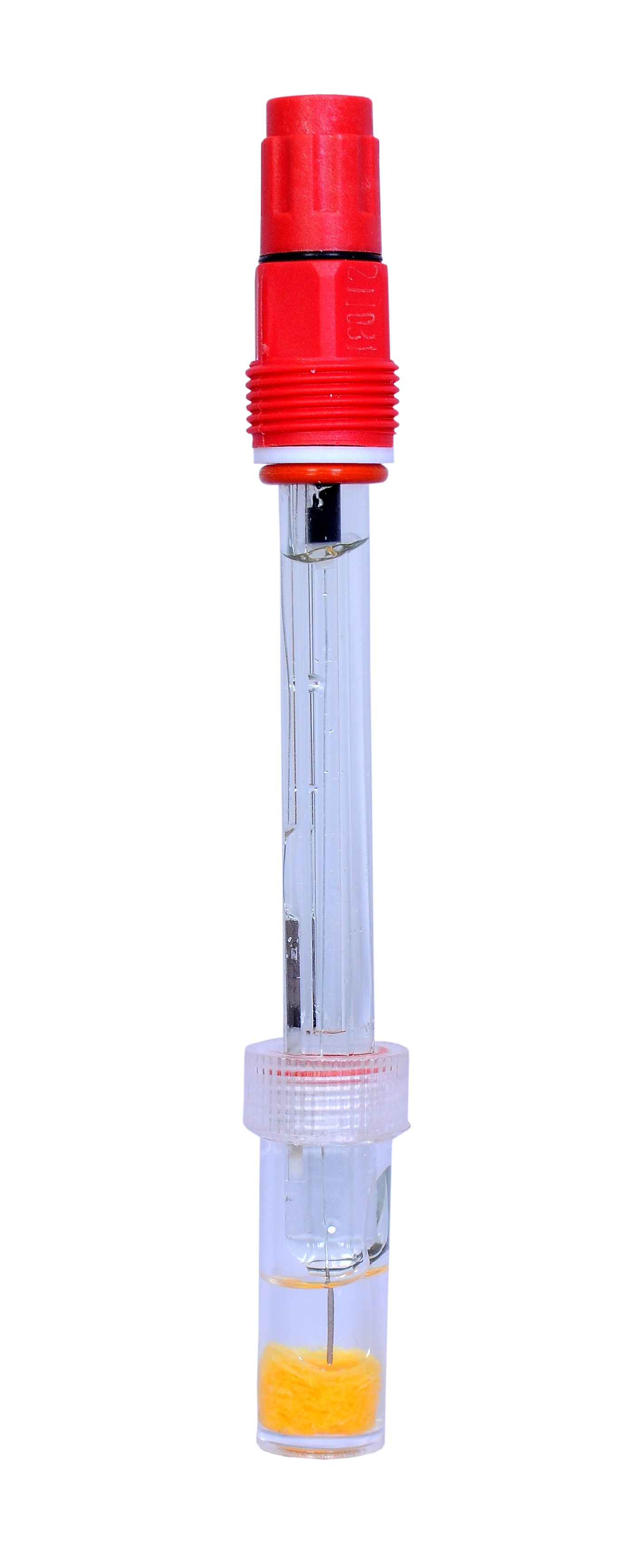

Designed for accuracy and stability in a heat intensive application,
the new MS pH 04 Ferm series pH sensors are optimized for
autoclaving and steam sterilization in biotechnology applications. MS
pH 04 sensors exhibit unparalleled stability after exposure to high
temperature sterilization. The reference electrode uses a silver silver
chloride sensor in combination with a new gelled potassium chloride
electrolyte to provide a stable reference potential through the single
ceramic reference junction.
PRINCIPLE
Why is pH Measurement required ?
To check the acidic or alkaline nature of aqueous solution. pH (Potential Hydrogen) is unit of
measurement, used to determine the Acidity or Alkalinity of an aqueous solution. Practical pH scale
for industrial instrumentation ranges from 0 to 14 pH. The acidic substances range from 0 to 6 and
on the other end are the alkaline substances, which range from 8 to 14, with pH 7 being neutral,
this is the pH of pure water which is neither very acidic nor very alkaline, is said to be neutral.
How is pH measured ?
Although everyone is familiar with Litmus paper, the only reliable way to measure pH is using
Potentiometric Combination electrodes. These electrodes develop a millivolts output corresponding
to pH value of solution which is directly proportional to the Free Hydrogen ion concentration in an
aqueous Solution. These generated raw mill volts are fed to MS pH 04 Ferm where it is processed
by amplifier & reading is displayed on meter
TECHNICAL SPECIFICATION
pH Range : 0 ~ 14 pH
Body : Glass
Temperature Range : 0 to 130°C
Operating Pressure : 6 Bar
Electrolyte : Gel
Reference Junction : Single Ceramic Junction
Sterilization temperature : 130°C
Shaft Length below Threads : 120 mm (Other Lengths on request at Extra Cost)
Shaft Diameter : 12 mm
Electrical Connection : S8
Process Connection : PG 13.5
• Advanced Embedded Microcontroller Based Design
• Can be connected to pH or ORP electrodes
• Multivariable Display for Process Value, Relay Status,
Temperature & 4 to 20 mA output
• Easy Front Key Calibration
• Auto / Manual Temperature Compensation
• Set Point – 4 Nos
• 3.2-inch LCD display
• 4 to 20 mA DC Isolated Output for pH or ORP
• Password can be Set
• Weatherproof IP 66 Protection
DESCRIPTION
MicroSet pH ORP Indicating Controller Transmitter Model MS pH 97 is used for various industrial
applications. MS pH 97 is a convenient and cost-effective solution for monitoring and maintaining
pH or ORP value. It can accept input from any pH or ORP sensor. MS pH 97 output is in the form
of Analogue 4-20 mA DC or MODBUS RS 485 RTU (Optional). Online pH ORP indication provided
through LCD display is easily readable. 2 Nos Relay Outputs are provided to operate Alarm,
Solenoid Valve, Pump etc. 4 Nos Setpoints for Relays can be programmed using Frontal Keypad
FEATURE
• Advanced Embedded Microcontroller Based Design
• IP 65 Weatherproof Enclosure
• Easy Front Key Calibration
• Auto / Manual Temperature Compensation
• LED indication for relay status
• Set Point – 4 Nos (Special Logic )
• 4 Digit, 1 inch High Intensity Red LED Display
• pH Sensor Slope Indication (Health of pH Sensor)
• 4 to 20 mA DC Isolated Output
• RS 485 Isolated Output (Optional)
DESCRIPTION
MicroSet pH Indicating Controller Transmitter Model MS
pH 97 is used for various industrial applications. MS pH
97 is a convenient and cost-effective solution for
monitoring and maintaining pH value. It can accept input
from any pH sensor. MS pH 97 output is in the form of
Analogue 4-20 mA DC or MODBUS RS 485 RTU
(Optional). Online pH indication provided through LED is
easily readable. 2 Nos Relay Outputs are provided to
operate Alarm, Solenoid Valve, Pump etc. 4 Nos Setpoints for Relays can be programmed using
Frontal Keypad.
FEATURE
• Online Measurement
• Auto / Manual Temp Compensation
• 4-20 mA DC Output
• On-Line Indication through LCD Display
• Simple operating interface
• 2 Wire System
• Easy Installation
DESCRIPTION
MicroSet pH Indicating Transmitter Model MS pH 211 T is used for various industrial
applications. MS pH 211 T is a convenient and cost-effective solution for monitoring and
transmitting pH or ORP value. It can accept input from any pH or ORP sensor. MS pH 211 T
output is in the form of Analogue 4-20 mA DC two wire
