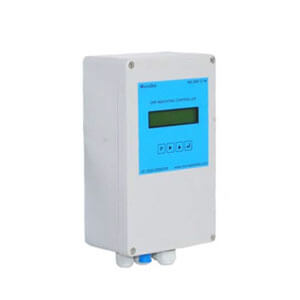

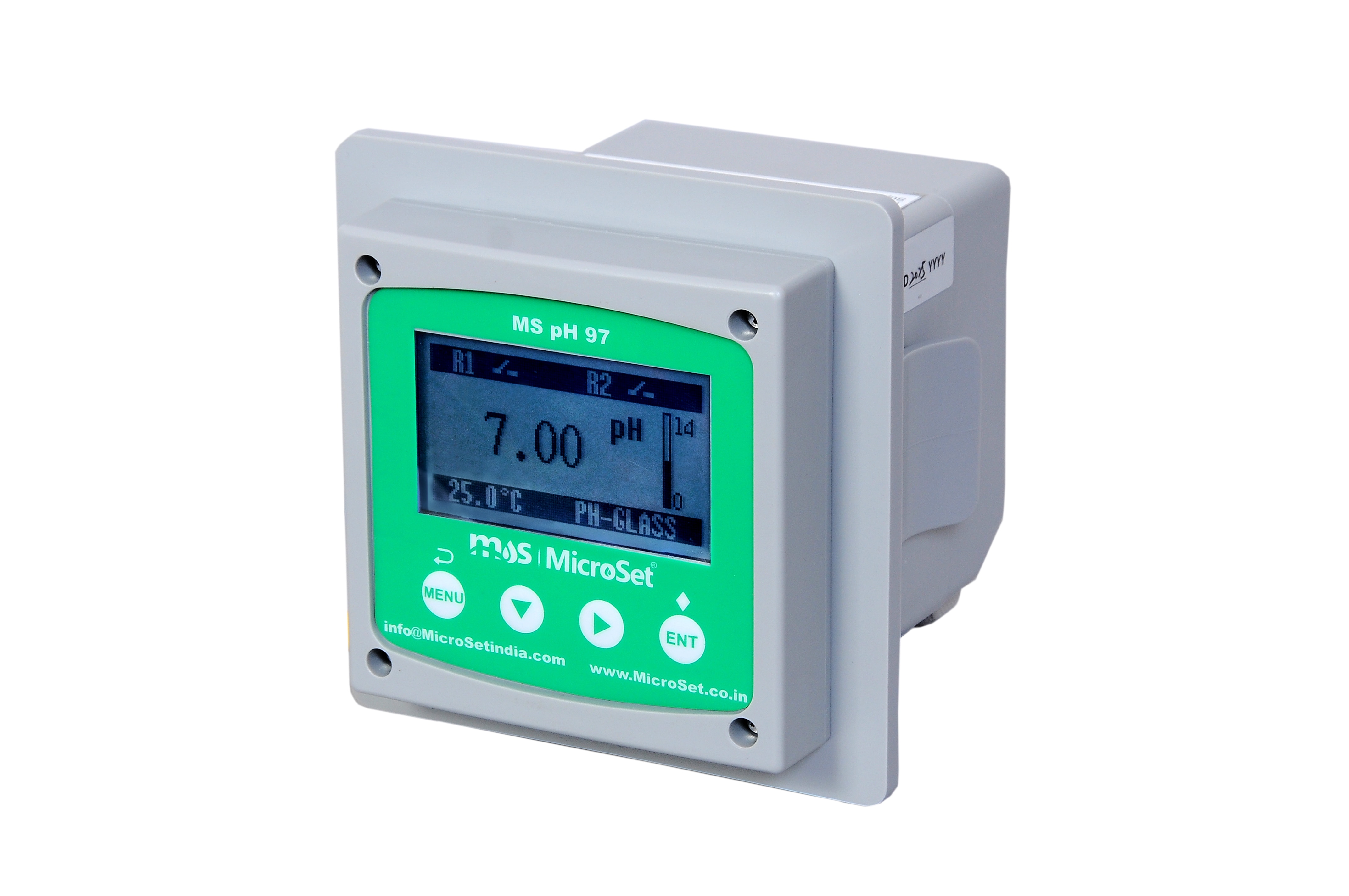

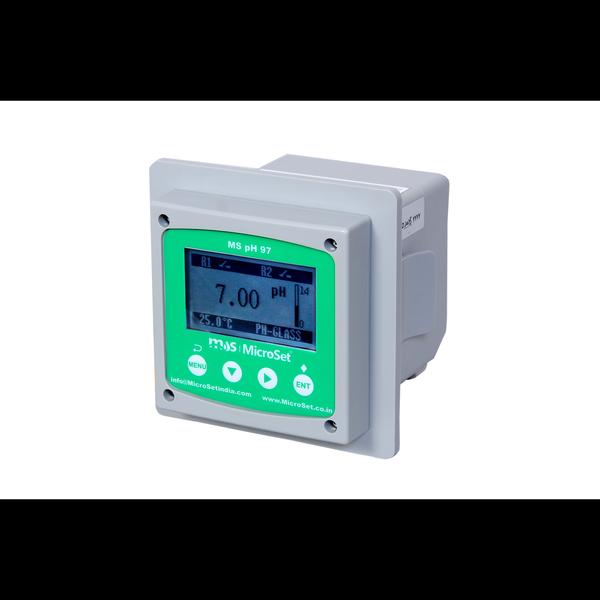

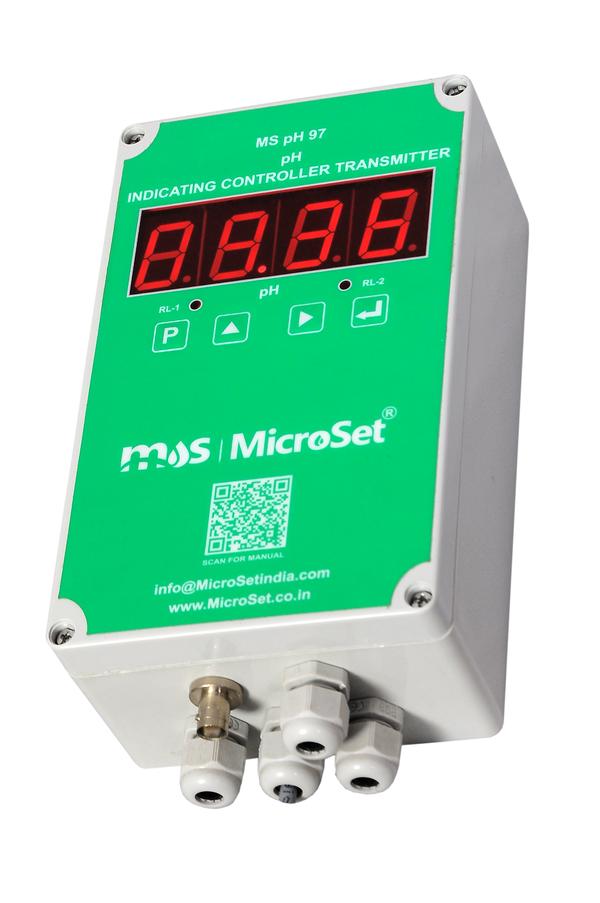

MicroSet pH ORP Indicating Controller Transmitter Model MS pH 97 is used for various industrial applications. MS pH 97 is a convenient and cost-effective solution for monitoring and maintaining pH or ORP value. It can accept input from any pH or ORP sensor. MS pH 97 output is in the form of Analogue 4-20 mA DC or MODBUS RS 485 RTU (Optional). Online pH ORP indication provided through LCD display is easily readable. 2 Nos Relay Outputs are provided to operate Alarm, Solenoid Valve, Pump etc. 4 Nos Setpoints for Relays can be programmed using Frontal Keypad FEATURE • Advanced Embedded Microcontroller Based Design • Can be connected to pH or ORP electrodes • Multivariable Display for Process Value, Relay Status, Temperature & 4 to 20 mA output • Easy Front Key Calibration • Auto / Manual Temperature Compensation • Set Point – 4 Nos • 3.2-inch LCD display • 4 to 20 mA DC Isolated Output for pH or ORP • Password can be Set • Weatherproof IP 66 Protection TECHNICAL SPECIFICATION • pH Range : 0 - 14 pH • ORP Range : ± 2000 mV • Temperature Range : -10 to 150°C • pH Resolution : 0.01 pH • ORP Resolution : 1 mV • Temperature Resolution : 0.1°C • pH Accuracy : 0.1% FS or ± 0.01pH • ORP Accuracy : ± 2 mV • Stability : 0.05% of measuring range every 24 hours without accumulation pH • Repeatability : Better than 0.1% of measuring range • Display : 128*64, 3.2-inch graphic dot matrix LCD • Set Point : 4 Nos • Calibration : pH - 3 Point, ORP - 2 Point • Output : Two SPST relays, Max. load 3A/250VAC, set high/low alarm, temp or clean control • Retransmission Output : Isolated 4-20 mA DC for pH/ORP Max. load 1000Ω ( RS 485 Optional) • Temperature Compensation : Auto (PT-100), Manual (Adjustable 0 to 150°C) • Power Supply : 100~240V 50/60Hz • Enclosure MOC : ABS • Protection : Weatherproof IP 66 • Work Temperature : 0~60℃, RH<95%, non-condensing • Storage Temperature : -20~70℃, RH<55%, non-condensing • Mounting : Panel Mounted • Electrical Interface : Reserve three M12*1.5 gland • Dimensions : 100 x 100 x120mm (Panel Cutout size 92X92mm) • Weight : 0.45 kg • Power Consumption : 3W
